Super Duplex Globe Valve
Custom Enquiry
Description

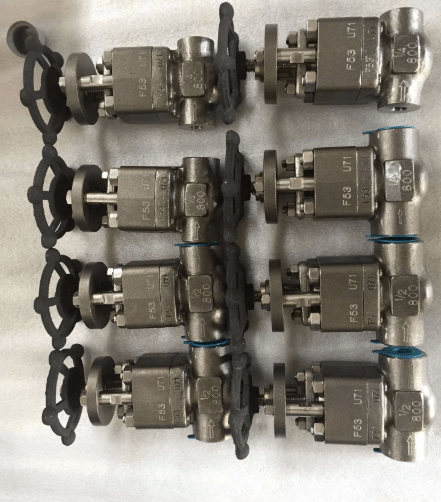

Super Duplex Globe Valve
Body: Super Duplex Stainless Steel 4A, 5A, 6A, F53, F55, Duplex Stainless Steel, Alloy 20, Hastelloy, Titanium,
Stainless Steel, Carbon Steel
Disc: A182 F51, F53, F55
Disc Nut: A182 F51, F53, F55
Stem: A182 F51, F53, F55
Nut: A194.4
Bolt: A193 B16
Gasket: Stainless Steel+Graphite
Backseat: A182 F51, F53, F55
Bonnet: A890 4A, A890 5A, A890 6A
Packing: Graphite, PTFE
Pin: A182 F6a
Gland: A182 F316L
Gland Follower: A351 CF8
Stem Nut: Copper Alloy
Nominal Size: 1/4″ to 2″
Nominal Pressure: Class800 to Class2500
Actuation: Handwheel, Electric Actuated, Pneumatic Actuated
Dimensions                                           Unit: mm
Class800
| Size | d | L | H(Open) | W |
| 1/4″ | 8 | 79 | 176 | 100 |
| 3/8″ | 10 | 79 | 176 | 100 |
| 1/2″ | 13 | 92 | 176 | 100 |
| 3/4″ | 17 | 111 | 212 | 125 |
| 1″ | 23 | 130 | 230 | 160 |
| 1 1/4″ | 30 | 152 | 254 | 160 |
| 1 1/2″ | 37 | 172 | 294 | 180 |
| 2″ | 46 | 200 | 327 | 200 |
