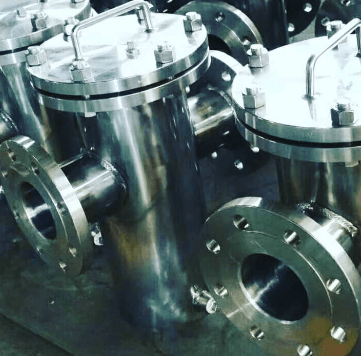

Simplex Basket Strainer
Body: Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316
Screen: SS304, SS304L, SS316, SS316L
Gasket: Graphite + Stainless Steel
Cover: A105, F304, F304L, F316, F316L
Cover Ball: A193 B7, A193 B8, A193 B8M
Cover Nut: 2H
Drain Plug: A193 B7, A193 B8, A193 B8M
Nominal Diameter: DN25 to DN400
Nominal Pressure: Class150 to Class300
Design and Manufacture: ASME B16.34
Flange End Dimension: ASME B16.25
Face to Face Dimension: ASME B16.25
Inspection and Test: API 598
Dimensions                                               Unit: mm
| DN | L | O | W | R | Z-Ñ„d | T | f |
| 25 | 250 | 110 | 79.4 | 50.8 | 4-Ñ„16 | 9.6 | 2.0 |
| 40 | 275 | 125 | 98.4 | 73 | 4-Ñ„16 | 12.7 | 2.0 |
| 50 | 275 | 150 | 120.7 | 92.1 | 4-Ñ„19 | 14.3 | 2.0 |
| 65 | 310 | 180 | 139.7 | 104.8 | 4-Ñ„19 | 15.9 | 2.0 |
| 80 | 318 | 190 | 152.4 | 127 | 4-Ñ„19 | 17.5 | 2.0 |
| 100 | 430 | 230 | 190.5 | 157.2 | 4-Ñ„19 | 22.3 | 2.0 |
| 125 | 480 | 255 | 215.9 | 185.7 | 8-Ñ„22.5 | 22.3 | 2.0 |
| 150 | 500 | 280 | 241.3 | 215.9 | 8-Ñ„22.5 | 23.9 | 2.0 |
| 200 | 625 | 345 | 298.5 | 269.9 | 8-Ñ„22.5 | 27 | 2.0 |
| 250 | 660 | 405 | 362 | 323.8 | 12-Ñ„25.5 | 28.6 | 2.0 |
| 300 | 750 | 485 | 431.8 | 381 | 12-Ñ„25.5 | 30.2 | 2.0 |
| 350 | 800 | 535 | 476 | 413 | 12-Ñ„28.5 | 33 | 2.0 |
| 400 | 900 | 595 | 539.8 | 469.9 | 16-Ñ„28.5 | 35 | 2.0 |
