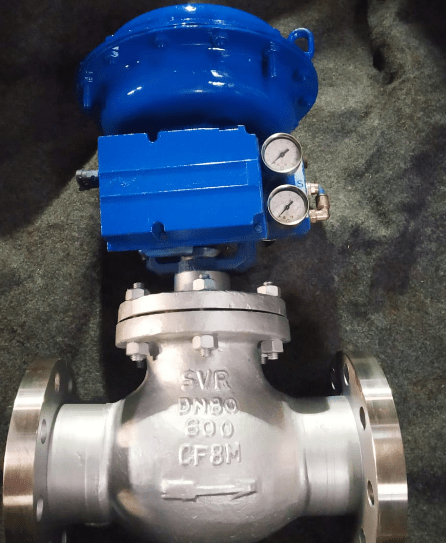

Pneumatic Sleeve Type Control Valve
Body: WCB, CF8, CF8M, SS304, SS316
Bonnet: WCB, CF8, CF8M, SS304, SS316
Seat: Stainless Steel
Gasket: Flexible Graphite+Stainless Steel
Packing: PTFE
Stem: Stainless Steel
End Connections: Flanged, Buttweld, Socketweld
Nominal Size: DN25 to DN300
Nominal Pressure: PN16 to PN64, Class150 to Class2500
Actuation: Double Acting, Spring Return
Dimension
PN16Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | H | H1 | ФM |
| 25 | 184 | 410 | 57 | 285 |
| 40 | 222 | 455 | 75 | 285 |
| 50 | 254 | 475 | 82 | 285 |
| 65 | 276 | 610 | 92 | 360 |
| 80 | 298 | 622 | 100 | 360 |
| 100 | 352 | 640 | 110 | 360 |
| 150 | 451 | 870 | 142 | 470 |
| 200 | 600 | 890 | 170 | 470 |
| 250 | 673 | 1203 | 202 | 580 |
| 300 | 737 | 1234 | 230 | 580 |
