Pneumatic Actuated Gate Valve
Custom Enquiry
Description

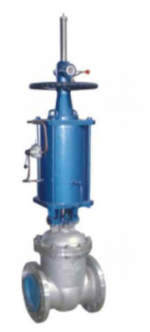

Pneumatic Actuated Gate Valve
Size: DN40 to DN700
Pressure: PN10 to PN150, Class150 to Class900
Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Bonnet: Carbon Steel, Ductile Iron, SS304, SS316, CF3, CF3M
Plug: A105, SS304, SS316, SS304L, SS316L
Seat, Seat Ring: PTFE
Packing: Graphite
Flanged Ends to ASME B16.5
Socket Weld Ends to ASME B16.11
Butt Weld Ends to ASME B16.25
Screwed Ends to ANSI , ASME B1.20.1
End Connections: Flanged, Socketweld, Buttweld
Operations: Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated
Dimensions                                                   Unit: mm
Class150
| DN | L | D | D1 | D2 | b | H | z-Ñ„d | H1 | D0 |
| 50 | 250 | 160 | 125 | 100 | 16 | 950 | 4-Ñ„18 | 570 | Â180 |
| 65 | 270 | 180 | 145 | 120 | 18 | 1050 | 4-Ñ„18 | 596 | 180 |
| 80 | 280 | 195 | 160 | 135 | 20 | 1080 | 8-Ñ„18 | 635 | 200 |
| 100 | 300 | 215 | 180 | 155 | 20 | 1145 | 8-Ñ„18 | 645 | 250 |
| 125 | 325 | 245 | 210 | 185 | 22 | Â 1210 | 8-Ñ„18 | 685 | 250 |
| 150 | 350 | 280 | 240 | 210 | 24 | 1300 | 8-Ñ„23 | 720 | 320 |
| 200 | 400 | 335 | 295 | 265 | 26 | 1660 | 12-Ñ„23 | 940 | 400 |
| 250 | 450 | 405 | 355 | 320 | 30 | 1790 | 12-Ñ„25 | 1020 | 400 |
| 300 | 500 | 460 | 410 | 375 | 30 | 1990 | 12-Ñ„25 | 1150 | 450 |
| 350 | 550 | 520 | 470 | 435 | 34 | 2090 | 16-Ñ„25 | 1170 | 450 |
| 400 | 600 | 580 | 525 | 485 | 36 | 2290 | 16-Ñ„30 | 1325 | 500 |
| 450 | 650 | 640 | 585 | 545 | 40 | 2485 | 20-Ñ„30 | 1465 | 500 |
| 500 | 700 | 705 | 650 | 608 | 44 | 2640 | 20-Ñ„34 | 1590 | 550 |
| 600 | 800 | 840 | 770 | 718 | 48 | 2940 | 20-Ñ„41 | 1720 | 550 |
| 700 | 900 | 910 | 840 | 788 | 50 | 3450 | 24-Ñ„41 | 1960 | 600 |
