Description

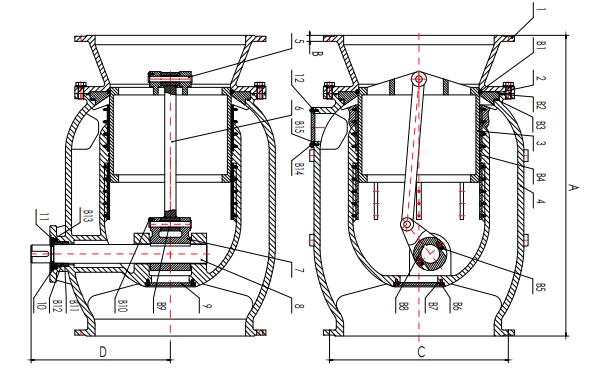

Plunger Valve

1.Front Body: Ductile Iron

2.Seat: Stainless Steel

3.Piston: Stainless Steel

4.Back Body: Ductile Iron

5.Pin: Steel

6.Lever: Stainless Steel

7.Clip: Stainless Steel

8.Shaft: Stainless Steel

9.Bottom Cover: Ductile Iron

10.Bushing: Bronze

11.Gland: Ductile Iron

12.Side Cover: Ductile Iron

B1. O Ring: NBR

B2. O Ring: NBR

B3. O Ring: NBR

B4: O Ring: NBR

B5. Inner Hex Bolt: Stainless Steel

B6. Inner Hex Bolt: Stainless Steel

B7. O Ring: NBR

B8. Key: Steel

B9. Bushing: PTFE

B10. Hex Bolt: Stainless Steel

B11. O Ring: NBR

B12. O Ring: NBR

B13. Inner Hex Bolt: Stainless Steel

B14. Hex Bolt: Stainless Steel

B15. O Ring: NBR

Size: DN100 to DN2000

Temperature Range: Up to 120°C

Pressure Rating: PN10, PN16, PN25

Connections: Flange

Body Material: Ductile Iron, Stainless Steel

Operating: Gear Operated, Electric, Pneumatic Actuated

Dimensions

Unit: mm

Size A B C D
PN10 PN16 PN10 PN16
DN100 325 22 22 180 180 140
DN125 325 22 22 210 210 160
DN150 350 24 24 240 240 195
DN200 400 24 24 295 295 220
DN250 500 26 26 350 355 220
DN300 600 26 28 400 410 280
DN350 700 26 30 460 470 340
DN400 800 26 32 515 525 440
DN450 900 28 40 565 585 500
DN500 1050 28 44 620 650 550
DN600 1175 34 54 725 770 645
DN700 1320 34 40 840 840 700
DN800 1480 36 42 950 950 805
DN900 1700 38 44 1050 1050 895
DN1000 1900 38 46 1160 1170 1030
DN1200 2100 44 52 1380 1390 1155
DN1400 2420 48 58 1590 1590 1390
