Hastelloy C276/B3 Floating Ball Valve
Body: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Bonnet: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Seat: PTFE, RPTFE, PPL
Seal: PTFE, RPTFE, PPL
Nominal Size: 2″ to 8″
Nominal Pressure: PN1.0 to 10MPa, Class150 to Class600

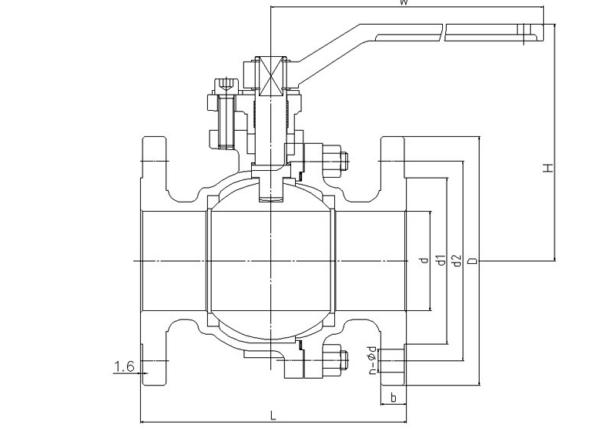

Dimensions Unit: mm
PN16
| DN | d | L | d1 | d2 | D | b | n-Фd | H | W |
| 50 | 51 | 216 | 92 | 127 | 165 | 23 | 8-Ф19 | 140 | 200 |
| 65 | 64 | 241 | 105 | 149 | 190 | 26 | 8-Ф22 | 160 | 290 |
| 80 | 76 | 283 | 127 | 168.5 | 210 | 29 | 8-Ф22 | 180 | 290 |
| 100 | 102 | 305 | 157 | 200 | 254 | 32 | 8-Ф22 | 208 | 360 |
| 125 | 127 | 381 | 186 | 235 | 279 | 35 | 8-Ф22 | 220 | 600 |
| 150 | 152 | 403 | 216 | 270 | 318 | 37 | 12-Ф22 | 290 | 800 |
| 200 | 203 | 502 | 270 | 330 | 381 | 42 | 12-Ф25 | 300 | 1000 |
