Description

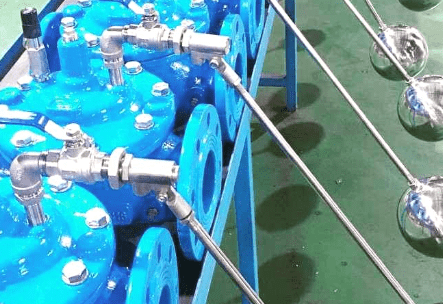

Float Control Valve
Body: Ductile Iron, Cast Iron
Disc: Ductile Iron, Cast iron
Cover: Ductile Iron, Cast Iron
Diaphragm: EPDM, Rubber
Spring: Stainless Steel
Seat: Ductile Iron, Cast iron
Nominal Diameter: DN20 to DN200
Nominal Pressure: PN10, PN16, PN25, PN40, PN64
End Connection: Flanged
Dimension
PN10Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | D | D1 | H | H1 |
| 20 | 180 | 105 | 75 | 212 | 179 |
| 25 | 180 | 115 | 85 | 212 | 179 |
| 32 | 180 | 135 | 100 | 212 | 179 |
| 40 | 203 | 145 | 110 | 265 | 210 |
| 50 | 203 | 160 | 125 | 265 | 210 |
| 65 | 235 | 180 | 145 | 310 | 215 |
| 80 | 285 | 195 | 160 | 350 | 245 |
| 100 | 360 | 215 | 180 | 460 | 305 |
| 125 | 400 | 245 | 210 | 520 | 365 |
| 150 | 455 | 280 | 240 | 570 | 415 |
| 200 | 585 | 335 | 295 | 695 | 510 |
