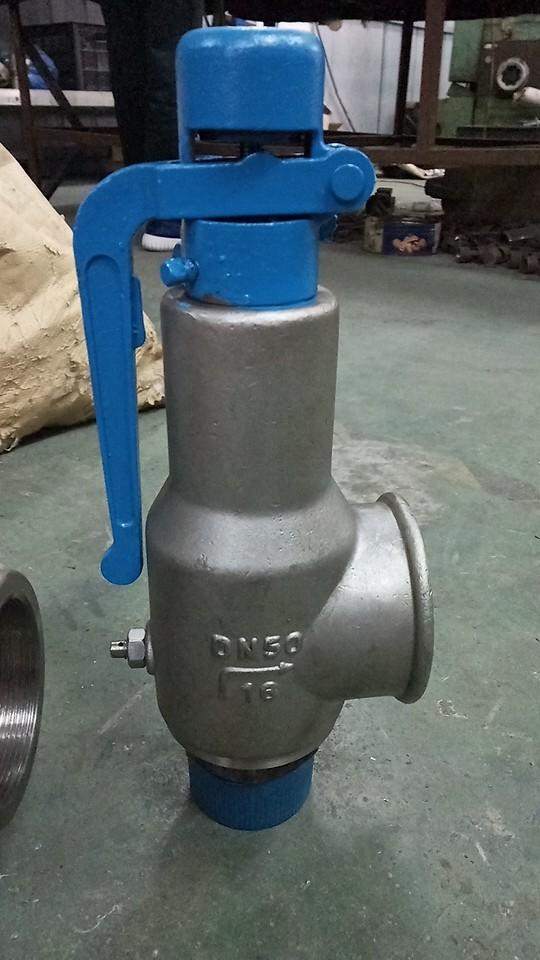

Conventional Safety Valve

Add to wishlist

Categories: Conventional Safety Valve, Safety Valve

Description

Description

Conventional Safety Valve

Body: WCB, A105, WC6, CF8M, LCB, LF2

Disc: Stainless Steel

Spring: Alloy Steel, Inconel, Monel, SS304

Bonnet: WCB, SS304, SS316

O Ring: VITON

Guide: SS304, SS316

Bellows: WCB, SS304, SS316

Nominal Size: DN15 to DN200

Nominal Pressure: PN 16 to PN40, Class150 to Class1500

Dimension

Size	D	D1	D2	b	t	Z-фd	D`	D1`	D2`	b`	t	Z`- фd`	L	L1	H
½”×3/4″	89	60.5	35	12	5	4-ф15	98	70	43	14	1.6	4-ф15	90	90	260
3/4″×1″	98	70	43	14	5	4-ф15	108	79.5	51	15	1.6	4-ф15	92	92	280
1″×1 ½”	108	79.5	51	15	5	4-ф15	127	98.5	73	18	1.6	4-ф15	105	105	290
1″×2″	108	79.5	51	15	5	4-ф15	152	120.5	92	18	1.6	4-ф19	105	105	290
1 1/2″×2″	127	98.5	73	18	5	4-ф15	152	120.5	92	18	1.6	4-ф19	124	124	320
1 1/2″×2 ½”	127	98.5	73	18	5	4-ф15	178	139.5	105	20	1.6	4-ф19	124	124	340
1 1/2″×3″	127	98.5	73	18	5	4-ф15	178	139.5	105	20	1.6	4-ф19	130	130	340
2″×2 ½”	152	120.5	92	18	5	4-ф19	190	152.5	127	22	1.6	4-ф19	130	130	360
2″×3″	152	120.5	92	18	5	4-ф19	190	152.5	127	22	1.6	4-ф19	130	130	360
2 1/2″×4″	178	139.5	105	20	5	4-ф19	229	190.5	157	24	1.6	8-ф19	137	137	360
3″×4″	190	152.5	127	22	5	4-ф19	229	190.5	157	24	1.6	8-ф19	156	156	450
4″×6″	229	190.5	157	24	10	8-ф19	279	241.5	216	26	1.6	8-ф22	197	197	510
6″×8″	279	241.5	216	26	10	8-ф22	343	298.5	270	29	1.6	8-ф22	240	240	740
8″×10″	343	298.5	270	29	10	8-ф22	406	362	324	31	1.6	12-ф25	279	276	810
