Bronze Wafer Butterfly Valve
Body: Bronze
Disc: Bronze, Aluminium Bronze
Seat: NBR, EPDM
End Connection: Wafer
Operation: Lever Operated, Electric Actuated, Pneumatic Actuated
Design and Manufacture Standard: API 609, MSS SP-67
Face to Face Dimension: API 609, MSS SP-67, DIN3202, BS EN558-1
Flanged End Dimension: ANSI B16.1, BS4504, DIN2501

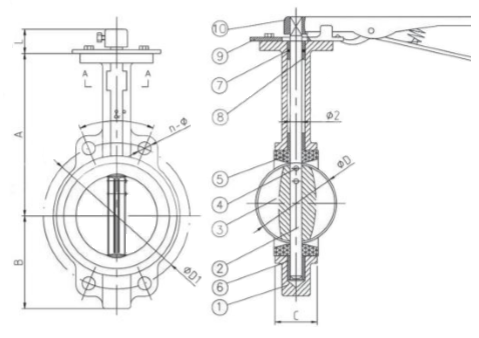

Dimensions                                          Unit: mm
| DN | A | B | C | D1 | n-Ñ„ |
| 40 | 110 | 70 | 33 | 110 | 4-19 |
| 50 | 161 | 80 | 42 | 125 | 4-19 |
| 65 | 175 | 89 | 44.7 | 145 | 4-19 |
| 80 | 181 | 95 | 45.2 | 160 | 8-19 |
| 100 | 200 | 114 | 52.1 | 180 | 8-19 |
| 125 | 213 | 127 | 54.4 | 210 | 8-19 |
| 150 | 226 | 139 | 55.8 | 240 | 8-23 |
| 200 | 260 | 175 | 60.6 | 295 | 8-23 |
| 250 | 292 | 203 | 65.6 | 350 | 12-23 |
| 300 | 337 | 242 | 76.9 | 400 | 12-23 |
