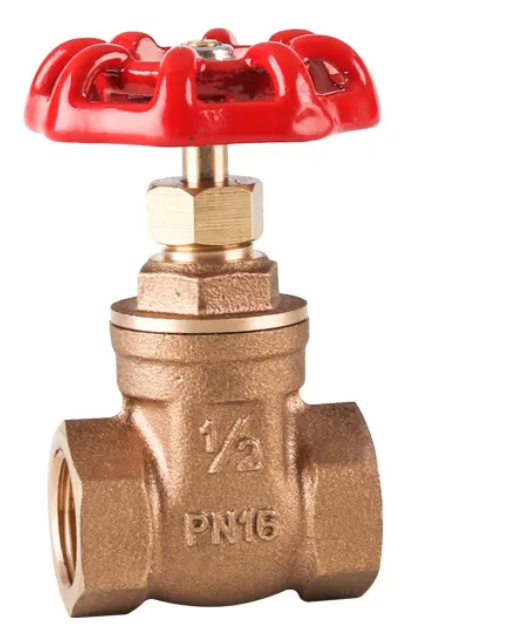

Bronze Gate Valve
Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Disc: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Bonnet: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Stem: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Wedge: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Bonnet Gasket: SS304+ Graphite
Packing: Graphite
End Connection: Flanged, Buttweld, Socketweld
Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Nominal Size: DN50 to DN500
Nominal Pressure: PN20, PN16
Design and Manufacture Standard: API 6D, API 608, BS5351
Face to Face Dimension: ANSI B16.10, API 6D
Flanged End Connection: ANSI B16.5
Buttweld End: ANSI B16.25
Inspection and Test: API 598, API 6D
Dimensions                              Unit: mm
| DN | D | L | H |
| 15 | 14 | 47.5 | 73 |
| 20 | 18 | 51.5 | 85 |
| 25 | 23.5 | 57.5 | 90 |
| 32 | 29 | 64 | 110 |
| 40 | 35 | 71.5 | 120 |
| 50 | 45 | 83 | 145 |
| 65 | 61 | 85 | 174 |
| 80 | 72 | 95 | 220 |
| 100 | 88 | 100 | 261 |
