Aluminium Bronze Floating Ball Valve
Body: Aluminium Bronze C95800
Bonnet: Bronze, Aluminium Bronze
Stem: Bronze, Stainless Steel
Seal: PTFE, PFA
Packing: PTFE
Gasket: PTFE
Nominal Size: DN15 to DN200
Nominal Pressure: Class150 to Class300, PN10 to PN40
Actuation: Handle Operated, Gear Operated

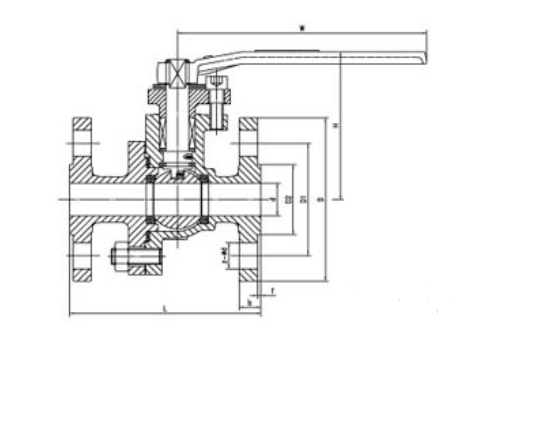

Dimensions                          Unit: mm
PN10
| DN | d | D | D1 | D2 | L | H | W | b | f | n-Ñ„d |
| 15 | 13 | 90 | 60.3 | 34.9 | 108 | 82 | 120 | 10 | 2 | 4- Ñ„16 |
| 20 | 19 | 100 | 69.9 | 42.9 | 117 | 90 | 120 | 11 | 2 | 4- Ñ„16 |
| 25 | 25 | 110 | 79.4 | 50.8 | 127 | 98 | 140 | 11.6 | 2 | 4- Ñ„16 |
| 32 | 32 | 115 | 88.9 | 63.5 | 140 | 110 | 180 | 13.2 | 2 | 4- Ñ„16 |
| 40 | 38 | 125 | 98.4 | 73 | 165 | 125 | 200 | 14.7 | 2 | 4- Ñ„16 |
| 50 | 49 | 150 | 120.7 | 92.1 | 178 | 137 | 230 | 16.3 | 2 | 4- Ñ„19 |
| 65 | 62 | 180 | 139.7 | 104.8 | 191 | 155 | 260 | 18 | 2 | 4- Ñ„19 |
| 80 | 74 | 190 | 152.4 | 127 | 203 | 167 | 280 | 19.5 | 2 | 4- Ñ„19 |
| 100 | 100 | 230 | 190.5 | 157.2 | 229 | 205 | 320 | 24.3 | 2 | 4- Ñ„19 |
| 150 | 150 | 280 | 241.3 | 215.9 | 394 | 295 | 600 | 26 | 2 | 8- Ñ„22 |
| 200 | 201 | 345 | 298.5 | 269.9 | 457 | 330 | 800 | 29 | 2 | 8- Ñ„22 |
