Alloy Swing Check Valve
Custom Enquiry
Description
Alloy Swing Check Valve
Body: Alloy Steel, Duplex Steel, Titanium, Monel, Inconel, Incoloy
Disc: Alloy Steel, Duplex Steel, Titanium, Monel, Inconel, Incoloy
Trim: Stainless Steel
Gland Packing: Graphite, PTFE
Nominal Diameter: DN50 to DN600
Nominal Pressure: PN10 to PN64, Class150 to Class1500

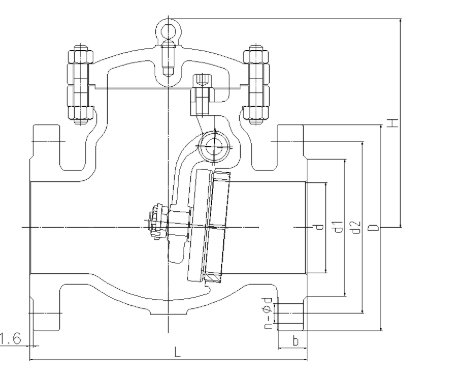

Dimensions
PN16Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | d | L | d1 | d2 | D | b | n-Ñ„d | H |
| 50 | 51 | 203 | 92 | 120 | 152 | 16 | 4-Ñ„19 | 132 |
| 65 | 64 | 216 | 105 | 139 | 178 | 18 | 4-Ñ„19 | 147 |
| 80 | 76 | 241 | 127 | 152 | 190 | 19 | 4-Ñ„19 | 176 |
| 100 | 102 | 292 | 157 | 190 | 229 | 24 | 8-Ñ„19 | 198 |
| 125 | 127 | 330 | 186 | 216 | 254 | 24 | 8-Ñ„22 | 255 |
| 150 | 152 | 356 | 216 | 241 | 279 | 26 | 8-Ñ„22 | 320 |
| 200 | 203 | 495 | 270 | 298 | 343 | 29 | 8-Ñ„22 | 380 |
| 250 | 254 | 622 | 324 | 362 | 406 | 31 | 12-Ñ„25 | 440 |
| 300 | 305 | 699 | 381 | 432 | 483 | 32 | 12-Ñ„25 | 480 |
| 350 | 337 | 787 | 413 | 476 | 533 | 35 | 12-Ñ„29 | 530 |
| 400 | 387 | 864 | 470 | 540 | 597 | 37 | 16-Ñ„29 | 580 |
| 450 | 438 | 978 | 533 | 578 | 635 | 40 | 16-Ñ„32 | 618 |
| 500 | 489 | 978 | 584 | 635 | 699 | 43 | 20-Ñ„32 | 657 |
| 600 | 591 | 1295 | 692 | 749 | 813 | 48 | 20-Ñ„35 | 760 |
