3 Way Converging and Diverging Control Valve
Custom Enquiry
Description

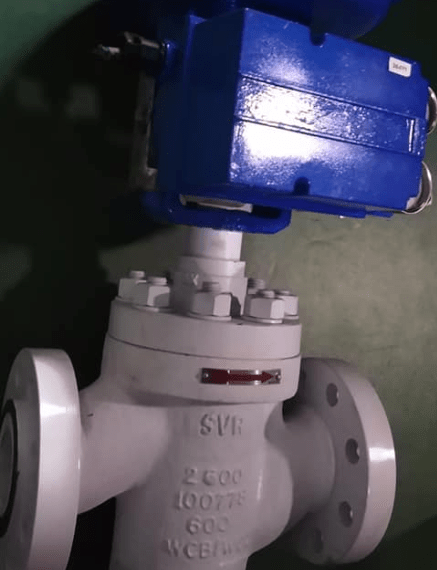

3 Way Converging and Diverging Control Valve
Body: CS, SS304, SS316, SS304L, SS316L
Bonnet: Carbon Steel, Stainless Steel
Seat: Stainless Steel
Cage: Stainless Steel
Stem: Stainless Steel
Guide Sleeve: Stainless Steel
End Connection: Flanged, Buttweld
Nominal Size: DN20 to DN300
Nominal Pressure: PN16 to PN40, Class150 to Class2500
Actuation Type: Double Acting, Spring Return
Dimension
PN16Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | L | H | H1 | Ñ„A |
| 20 | 181 | 415 | 52.5 | 285 |
| 25 | 184 | 422 | 57.5 | 285 |
| 32 | 200 | 450 | 75 | 285 |
| 40 | 222 | 454 | 75 | 285 |
| 50 | 254 | 460 | 82.5 | 285 |
| 65 | 276 | 595 | 92.5 | 360 |
| 80 | 298 | 612 | 100 | 360 |
| 100 | 352 | 645 | 110 | 360 |
| 125 | 400 | 760 | 125 | 470 |
| 150 | 451 | 793 | 142.5 | 470 |
| 200 | 495 | 880 | 170 | 470 |
| 250 | 622 | 1180 | 202.5 | 585 |
| 300 | 698 | 1230 | 230 | 585 |
