1 Piece Screwed Ball Valve
Custom Enquiry
Description
1 Piece Screwed Ball Valve
Full Port or Reduced Port
Investment cast stainless steel unibody
Blow-out proof stem, Double reduced port
Size: DN6 to DN50
Nominal Pressure: PN1.0 to PN2.5
Body: CF8, CF8M, Carbon Steel, Cast Iron
Ball: ASTM A351 Gr CF8M
Seat: PTFE
Insert: ASTM A351 Gr CF8M
Stem: SS316
Thrust washer: PTFE
Stem packing: PTFE
Gland ring: SS304
Handle: SS304
Stem washer: SS304
Stem nut: SS304
Locking device: SS304

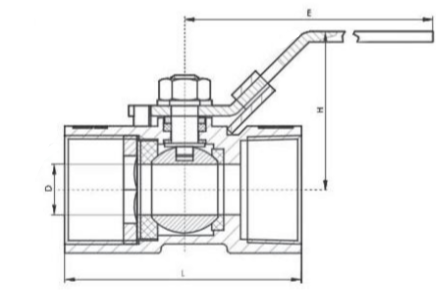

Dimension:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
DN | L | D | E |
6 | 40 | 5 | 70 |
10 | 45 | 7 | 78 |
15 | 55 | 9 | 99 |
20 | 60 | 12 | 96 |
25 | 70 | 15 | 112 |
32 | 78 | 20 | 128 |
40 | 83.5 | 25 | 142 |
50 | 96.5 | 32 | 155 |
