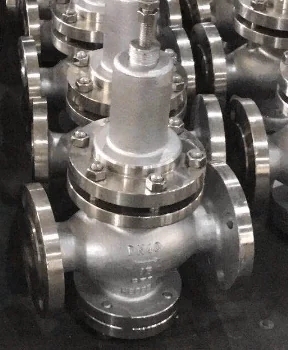

Steam Pressure Reducing Valve

Steam pressure reducing valve supplier in Sharjah- Efficient Steam Flow Management

Middleeast is the top Steam pressure reducing valve supplier in Sharjah. It is a device used to regulate the pressure of steam in a system.

Working Mechanism:

It is operate on basis of sensing downstream steam pressure through valve. As soon as the pressure exceed set point, the spring close valve to limit the flow of steam. Once the pressure falls below the set point, the valve opens to improve the flow of steam to maintain the pressure steady in the system.

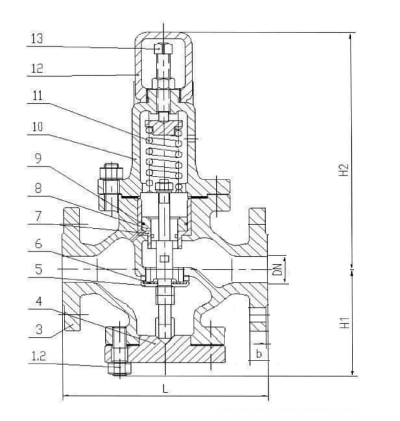

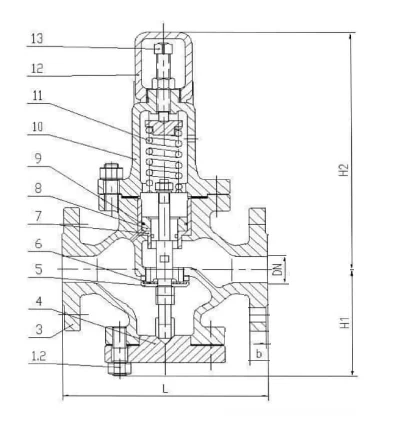

Key Parts:

1)Valve Body: The heavy casing of the internal parts and directing the steam flow.
2)Spring: The spring regulates the operation of the valve by its connection with the diaphragm, altering opening and closing with respect to downstream pressure.
3)Pressure Sensing Mechanism: Regulates the downstream steam pressure and adjusts the valve to achieve the set pressure.
4)Diaphragm or Piston: Tracks the variations in downstream pressure, assisting in the adjustment of the valve position.
5)Inlet and Outlet Ports: Allow the entry of steam and exit of the valve, enabling the flow to be properly regulated.

Advantages:

1)Automatic Pressure Regulation
2)Energy Efficiency
3)Durability
4)Low Maintenance

Industries:

1)Power Generation Plants
2)Textile Industry
3)Pulp & Paper Industry
4)Chemical Industry
5)Petrochemical Industry
6)Marine Industry

Description:
Available materials: Ductile Iron, WCB, WCC, WC6, LCB, LCC, SS304, SS316, Cast iron
Size: 1/2″ to 24″
Nominal Pressure: PN10 to PN100
Class: 150 to 600
Ends: Threaded, Buttweld, Socket weld, Flanged
