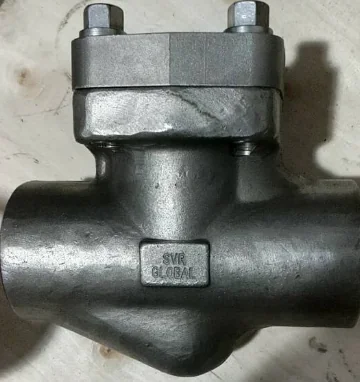

Forged Steel Check Valve

Forged steel check valve
Middleeast Valve is one of the greatest Forged Steel Check valve supplier in Saudi Arabia which Supplies good quality of valves to Fujairah , Ajman . Check valves made of forged steel are designed and produced to have a long service life and dependability. According to the needs of the customer, forged check valves can have full ports or reduced ports.

Forged steel Check valves are one-way or non-return valves that open in response to fluid flow and pressure and closing to stop the pressure from back flowing to upstream machinery like pumps and compressors.

Definition of Forging

Forging is a metalworking process that involves shaping metal with localised compressive forces. There are three types of forging processes based on the temperature of the metal being worked with: cold forging, warm forging and hot forging.

Definition of Forged Steel:

Forged steel is a carbon and iron alloy that has been compressed under extreme pressure to create a very hard and strong substance. It has been used to make various materials for thousands of years. Specialized machines or hydraulic hammers are used in modern forged steel production. When it comes to understanding the benefits of forged steel, there are numerous factors to consider.

Definition of a Check Valve:

An automatic safety mechanism Known as a check valve is used to allow fluids and gases to flow in one direction while preventing reverse flow.

It is also called ‘One-way valve’, ‘Clack valve’ or ‘Non-return valve’ since it only allows media to flow in one direction. Fluids enter the valve at the inlet under pressure, where they push the disc away from the valve’s seat and out the outlet.

The disc automatically returns to its seat to stop the flow if there is a pressure drop.

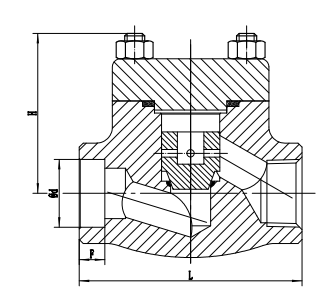

A basic check valve has four individual parts:

Body
Seat
Disc
cover

Industries

Power Plant and Processed Industries
Petro chemicals
Refineries
Cement
Sugar Industries

Types

Swing check valve
Piston check valve
Y type swing check valve

Advantages

These valves have excellent durability
The grain structure of valve is highly refined
Increase impact and overall durability.

Description:-

Middleeast Valve is one of the greatest Forged Steel Check valve supplier in Saudi Arabia offering an extensive range of valves in numerous sizes, styles and designs.

Body material :- ASTM A -105 Forged carbon steel ASTM A 182 F304/F304L- Forged stainless steel ASTM A 182 F316 / F316L – Forged stainless steel ASTM A 182  F11/F22 – Alloy Steel
Ends: Butt weld , socket weld
Size: ½ to 80”
Class: 150 to 2500
Material: A105, F11, f22, F91, F304,F316
