Butterfly Valve
Middleeast valve is the leading Butterfly Valve Suppliers in Saudi Arabia. It is a crucial component in fluid control systems, designed to regulate the flow of liquids or gases. Its primary parts include a disc, a shaft, and an actuator.
Working- the disc, typically circular, is positioned within the pipe and can pivot on the shaft. When the actuator is activated, it rotates the disc to either open or close the valve. The degree of rotation determines the flow rate.

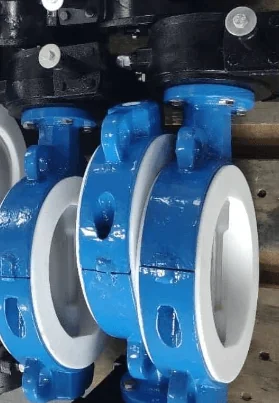

Types: Wafer Butterfly Valve Advantages: It requires less material Industries: Chemical Industry Components: 1)Body: The external shell of the valve, which contains the internal parts and allows fluid to pass through, is called the body. Description: Body Material: Cast Carbon steel (WCC, WCB, WC6), Stainless Steel [SS316, SS304, SS316L, SS904L, CF8, CF8M, F31L, F91], DUPLEX STEEL and Super duplex Steel (F51,F53, F55) , Cast iron, Ductile Iron.

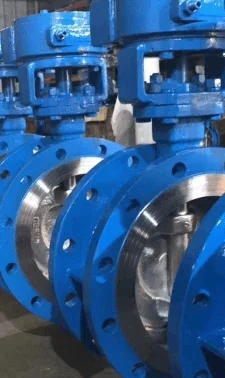

Flanged Butterfly Valve

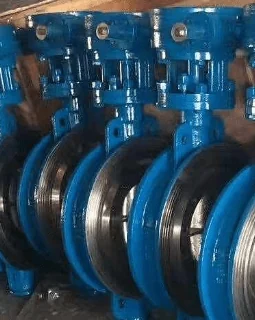

Triple Eccentric Butterfly Valve
Double Offset Butterfly Valve
Triple Offset Butterfly Valve
Lug Butterfly Valve
Simple to design and manufacture
Wide variety to use in case of underground installation also
Easy to Install
Smooth to control.
Oil and Gas Industry
Petrochemical Industry
Energy Industry
LNG and LPG
Marine Industry
Automobile Industry
2)Disc: Often referred to as the butterfly, the disc is a flat or slightly curved plate that rotates around the shaft to control the flow.
3)Shaft: The shaft permits the rotation that regulates the fluid flow by joining the actuator and the disc.
Size – 2” – 48”
Class- 150 to 300; PN 6 – PN 25
Ends- Wafer, flanged, lug
Operations- Lever operated, gear operated, pneumatic actuated and electric actuated.
